MERIDA. MORE BIKE.
Contact the shop (06) 877 8477 for available sizes.

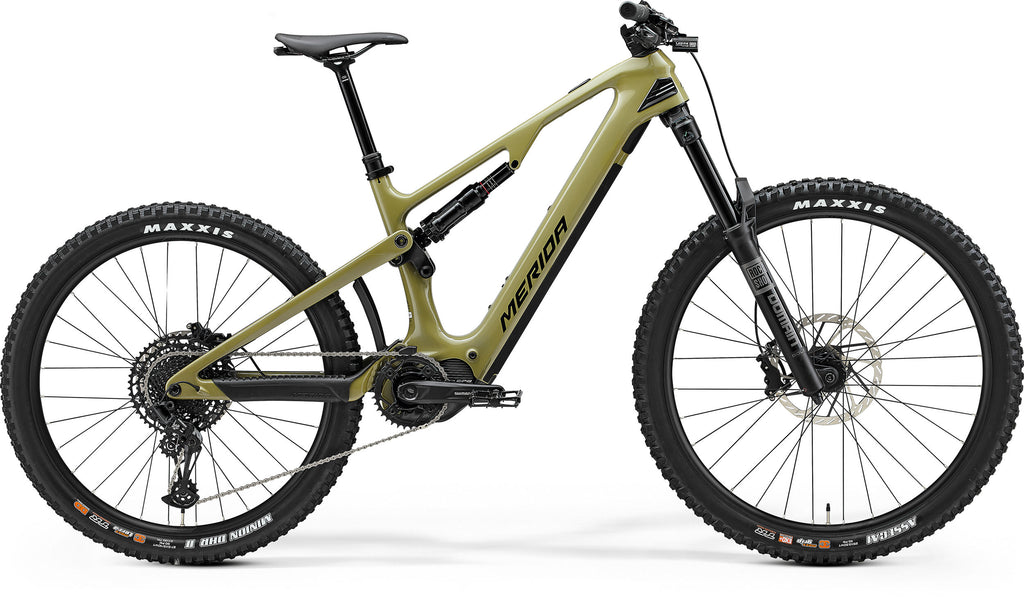

The eONE-SIXTY CF blends lightweight full carbon design with powerful motor support, featuring a 600 Wh battery and an optional 360 Wh range extender—so you get precise handling, solid range, and strong assistance on tough climbs. With 170 mm front and 174 mm rear travel, it’s ready for race tracks or endless trail laps.
Combining the award-winning FAST suspension and AGILOMETER sizing with e-bike expertise, it offers size-tuned performance and low-maintenance flexstay suspension. The mixed 29" front and 27.5" rear wheels deliver playful control, and the flip chip lets you switch to full 29ers without changing geometry. Plus, the adjustable dropper post lets you dial in stability or agility to match your style.
- Lightweight full carbon fibre CF4 frame with 174 mm rear wheel travel
- SRAM NX Eagle 12-speed drivetrain, MERIDA tubeless-ready wheelset
- RockShox Domain fork with 170 mm travel and Super Deluxe rear shock
- Integrated 600 Wh battery with optional 360 Wh range extender, powerful Shimano EP801 drive unit
- Mixed wheel size as standard with option to full 29"
- Reach-based AGILOMETER sizing system with 30-230 mm adjustable dropper post
| FRAME | eONE-SIXTY CF III; MAT carbon; 160 STR; 29 |
| SHOCK | Rock Shox Super Deluxe Select |
| FORK | Domain Gold RC E-MTB; Air; 170 STR; Tapered; 44mm fork offset; 29x3.0" max WHS |
| BRAKE-F | Sram DB8 Stealth; 4 piston |
| BRAKE-R | Sram DB8 stealth; 4 piston |
| ROTOR-FRONT | Sram HS2; 220mm |
| ROTOR-REAR | Sram HS2; 200mm |
| CHAIN | Sram NX Eagle |
| CRANKSET | Shimano FC-EM600 |
| CRANK SIZE | Shimano FC-EM600; 165 mm all sizes; |
| DERAILLEUR-REAR | Sram NX Eagle |
| FREEWHEEL | Sram CS PG1230 EAGLE 11-50T |
| PEDAL | VP VPE-527 |
| GRIP | MERIDA EXPERT EC |
| HANDLEBAR | MERIDA EXPERT eTR; 780 WHB; XS,S 20RHB ; M,L,XL 30RHB |
| STEM | MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount |
| STEM SIZE | 40 mm all sizes |
| HEADSET | Acros ICR MERIDA INTEGRATED neck w/ Blocklock |
| HUB-F | Novatec SL-ELITE D041SB-B15; 110x15 WHF; 32 SPH; 6 bolt |
| HUB-R | Novatec SL-TEAM D462SB-S3S-B12-11S; 148x12 WHR; 32 SPH; 6 bolt |
| AXLE-R | MERIDA EXPERT TR; including removeable lever, 6/4mm allen key |
| SADDLE | MERIDA COMP SL; V-mount; incl. MERIDA minitool |
| SEAT CLAMP | MERIDA EXPERT |
| SEAT POST | MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M/L: 200 SPT - XL: 230 SPT |
| SHIFTER-F | Limotech RM10 (For SRAM MMX) |
| SHIFTER-R | Sram NX Eagle Single Click |
| SPOKE | Black stainless |
| TIRE-F | Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip |
| TIRE-R | Maxxis DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra |
| FENDER | EOF-204 |
| LIGHT-FRONT | LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount |
| LIGHT-REAR | USB REAR Light CG-214RG |
| DRIVE UNIT | Shimano EP801; 85Nm |
| DRIVE COVER | CR-026 + CR-027 |
| BATTERY | Trendpower TPS-C15-58SD; 600Wh integrated |
| SWITCH | Shimano SW-EM800-L |
| DISPLAY | Shimano SC-EM800 |
