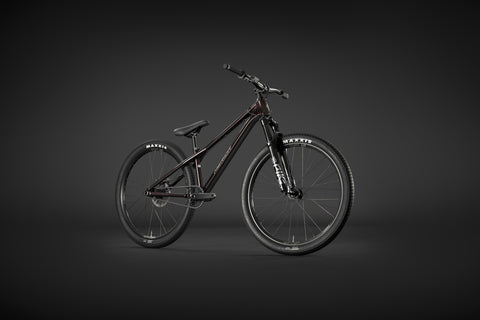

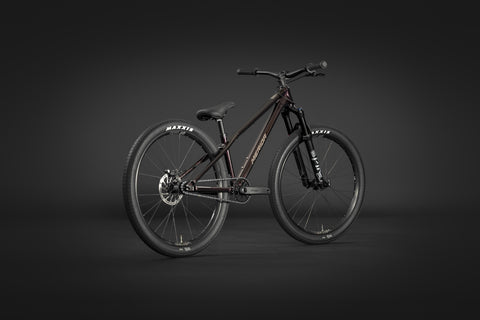

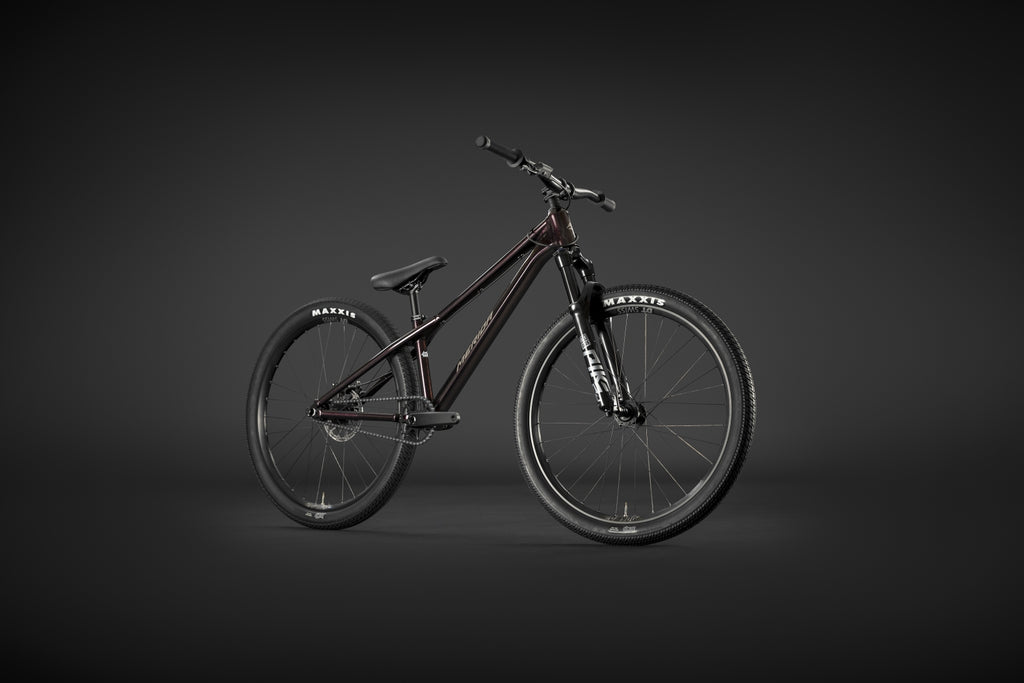

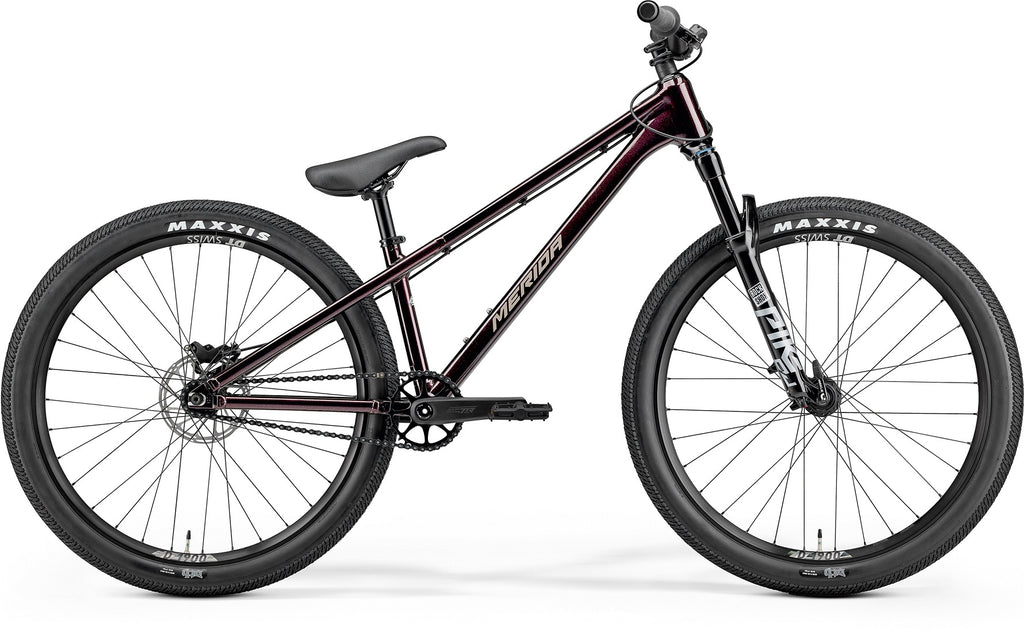

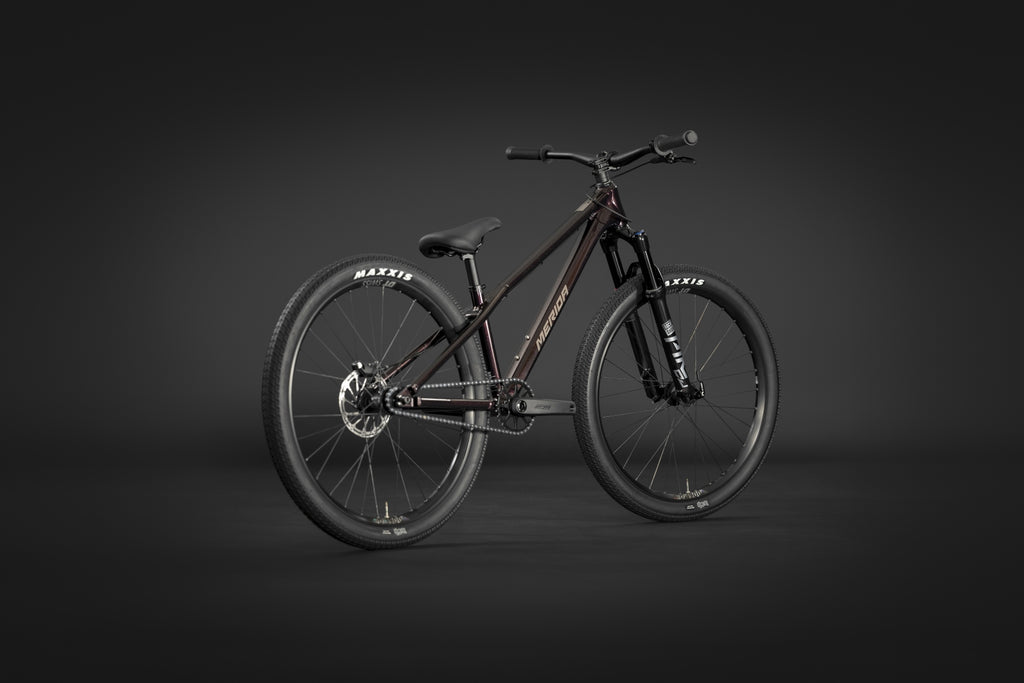

Our top-end dirt-jump build, made for the trail bosses, slopestyle shredders and pump track pinners. A super tough aluminium frame, 26" wheels and a kit that's ready to take a beating and laugh it off.
- Tough 6061 aluminium frame with ability to run standard gyro
- Incredibly agile and tough 26" wheels with singlespeed gearing for simplicity
- Dirt-jump specific RockShox Pike DJ 100 mm fork
- Hydraulic SRAM 4-piston rear brake plus cable operated front
- Tough 160 mm cranks and DT Swiss D1900 wheelset
- Bottle bosses for drinks or lock boost versatility for everyday use
The Merida Dirt 700 Jump Bike is built tough for serious dirt-jump fun. Its strong aluminium frame and 26" DT Swiss wheels handle big landings and tricks with ease. Featuring a RockShox Pike DJ fork for smooth rides and powerful hydraulic and cable brakes, it’s ready for barspins and tailwhips with gyro compatibility. Whether hitting pump tracks or smashing jumps, this bike is your unstoppable, playful partner for progression and endless fun.
| FRAME | Rock Shox Pike DJ; Air; 100 STR; 15x100mm; 26x2.5" max. WHS; 40mm fork offset; tapered |
| FORK | Tektro MD-M280; 2 piston |
| BRAKE FRONT | Sram DB4; 4 piston |
| BRAKE REAR | Tektro TR-160-52; 160mm |
| ROTOR FRONT | Sram CenterLine; 160mm |
| ROTOR REAR | KMC Z1 narrow |
| CRANKSET | MERIDA Expert TR II; 32 ATC |
| CRANK LENGTH | 160mm |
| BOTTOM BRACKET | Samox BSA 24mm EB2401 |
| CASSETTE | 13t singlespeed cog |
| GRIP | MERIDA COMP DR |

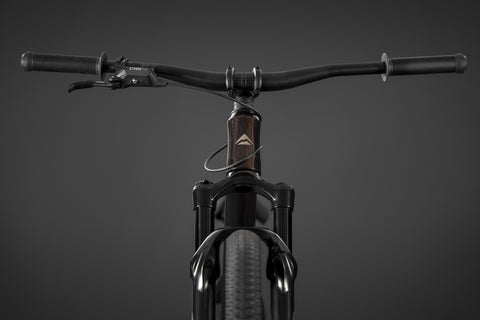

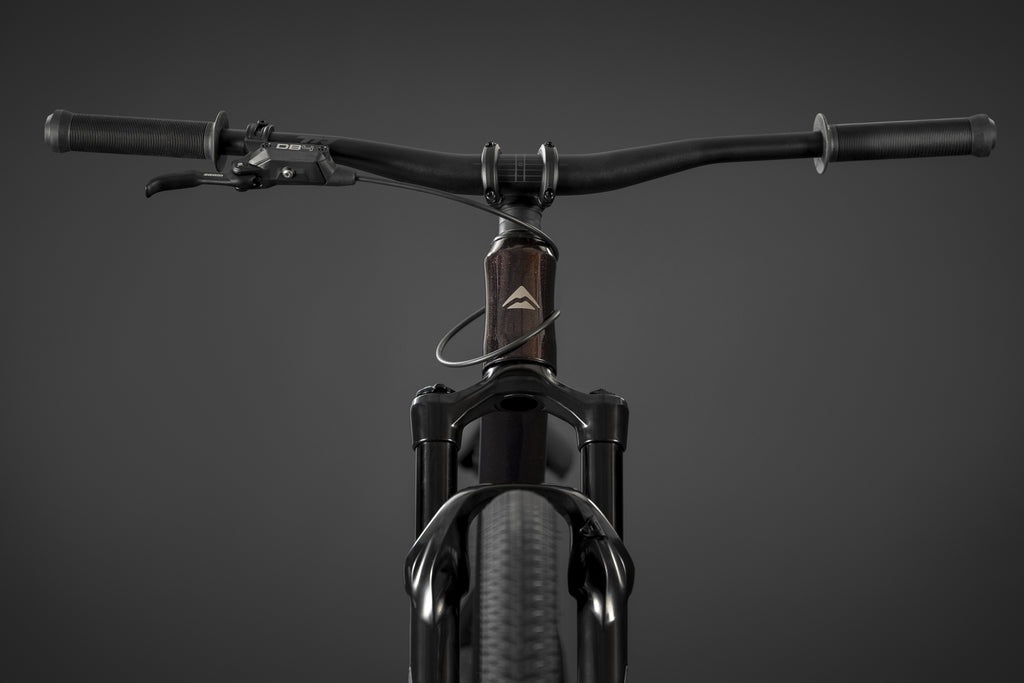

| HANDLEBAR | MERIDA COMP TR; MAT aluminium; 780 WHB; 20 RHB |
| STEM | MERIDA EXPERT TR II; MAT aluminium; 35 DSH; 0 ASD |
| STEM SIZE | 40mm |
| HEADSET | FSA NO.57 |
| RIM | DT Swiss D1900; 30 IWR; 110x15mm WHF; 135x10mm bolt on WHR; 13t; tubeless tape ready (tape installed) |
| SADDLE | MERIDA COMP DR |
| SEAT CLAMP | MERIDA EXPERT |
| SEATPOST | MERIDA COMP DR; MAT aluminium; 27.2 DSP; 0 SSB; 250mm length |
| TUBE | CST Ultralite |
| TYRE FRONT | Maxxis DTH; 26x2.3" |
| TYRE REAR | Maxxis DTH; 26x2.3" |
