Awesome All-Mountain eMTB Power
Contact the shop (06) 877 8477 for available sizes.

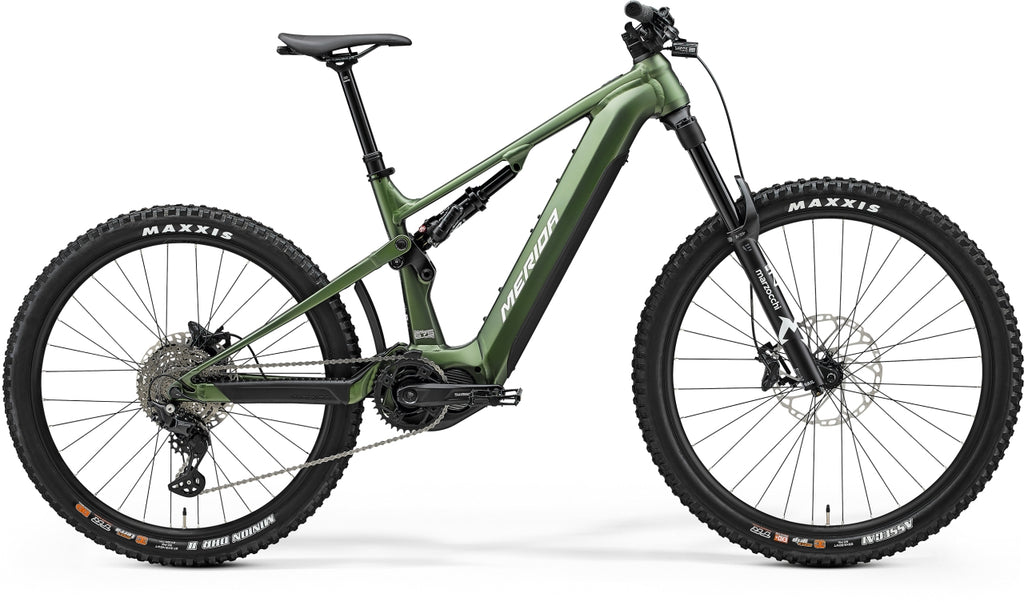

The new eONE-SIXTY is ready to launch your next adventure downhill. Built with a sturdy all-aluminium frame, it packs a punch with a powerful motor, a removable 750 Wh battery, and an optional 360 Wh range extender—so the only thing stopping you is your own call. Its award-winning ONE-SIXTY-inspired geometry makes climbing tough trails a breeze and descending pure fun. The FAST suspension with 174 mm rear and 170 mm front travel smooths out every bump, while the flexstay design keeps maintenance low. Play around with mixed 29" front and 27.5" rear wheels or switch to full 29ers without losing your edge. Plus, choose a longer frame for stability or a shorter one for nimble moves, with some models boasting an adjustable dropper post for extra flair.
- Fourth generation LITE aluminium frame with 174 mm rear wheel travel
- Marzocchi Z1 fork with 170 mm travel and Bomber Air rear shock
- Highly durable Shimano Deore Linkglide drivetrain and MERIDA tubeless-ready wheelset
- User-removable 750 Wh battery with optional 360 Wh range extender, powerful Shimano EP801 drive unit
- Mixed wheel size as standard with option to full 29"
- Reach-based AGILOMETER sizing system with long-travel dropper posts on all sizes
| FRAME | eONE-SIXTY LITE IV; MAT aluminium; 160 STR; 29x2.6" max. WHS; 148x12 AST; intube ; 750 Wh |
| SHOCK | Marzocchi Bomber Air; platform |
| FORK | Marzocchi Z1 eMTB; Air; 170 STR; Tapered; 44mm fork offset; 29x2.6" max WHS |
| BRAKE-F | Shimano Deore M6120; 4 piston |
| BRAKE-R | Shimano Deore M6120; 4 piston |
| ROTOR-FRONT | Shimano RT64; 220 mm |
| ROTOR-REAR | Shimano RTEM600; 203 mm |
| CHAIN | Shimano LG500 |
| CHAINGUARD | |
| CRANKSET | FSA 1x Steel Chainring; 36 ATC |
| CRANK SIZE | Shimano FC-EM600; 165 mm for all sizes |
| DERAILLEUR-FRONT | |
| DERAILLEUR-REAR | Shimano DEORE RDM5130 LinkGlide 10 |
| FREEWHEEL | Shimano LG400; 11-43 ATC; 10 GER |
| PEDAL | VP VPE-527 |
| GRIP | MERIDA EXPERT EC |
| HANDLEBAR | MERIDA EXPERT eTR; 780 WHB; XS,S 20RHB ; M,L,XL 30RHB |
| STEM | MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount |
| STEM SIZE | 40 mm all sizes |
| HEADSET | Acros ICR MERIDA EXTERNAL neck w/ Blocklock |
| HUB-F | Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock |
| HUB-R | Shimano TC600-HM-B; 148x12 WHR; 32 SPH; Centerlock |
| AXLE-F | |
| AXLE-R | MERIDA EXPERT TR; including removeable lever, 6/4mm allen key |
| SADDLE | MERIDA COMP SL; V-mount; incl. MERIDA minitool |
| SEAT CLAMP | MERIDA EXPERT |
| SEAT POST | MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M/L: 200 SPT - XL: 230 SPT |
| SHIFTER-F | Shimano SL -MT500-IL (Need to check if SL-MT500-IL is competible with LIMOTEC post) |
| SHIFTER-R | Shimano XT M5130 10 |
| SPOKE | Black stainless |
| TIRE-F | Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip |
| TIRE-R | Maxxis DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra |
| CARRIER | |
| FENDER | EOF-204 |
| KICKSTAND | |
| LIGHT-FRONT | LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount |
| LIGHT-REAR | LEZYNE LED FEMTO USB REAR STVZO |
| FRAME LOCK | |
| DRIVE UNIT | Shimano EP801; 85Nm |
| DRIVE COVER | CR-010 + CR011 |
| BATTERY | Trendpower Internal Battery Gen 2; 750Wh |
| SWITCH | Shimano SW-EM800-L |
| DISPLAY | Shimano SC-EM800 |
