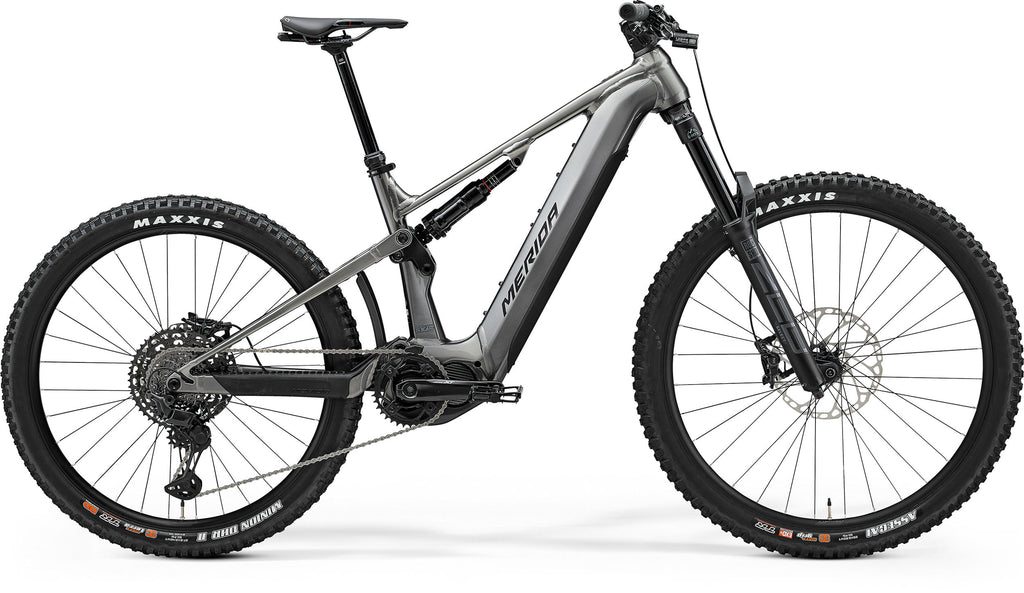

Merida e-One Sixty 875 | eMTB | 2024

  • Sale
  • $8,999.00
  • Regular price $9,999.00
includes GST. Check Bike Shipping Costs here.


Awesome All-Mountain eMTB Power

Contact the shop (06) 877 8477 for available sizes.

Goodbye range anxiety, hello horizon. The eONE-SIXTY 875 marries a full-power drive unit with a user-removable 750 Wh battery and optional 360 Wh range extender, all wrapped up in our durable aluminium frame. With our proven, low-maintenance FAST suspension platform, you can run mixed wheel sizes as standard or switch to full 29" without compromise, while we've combined the no-compromise suspension performance of a RockShox Zeb fork and Super Deluxe shock with Shimano's durable XT Linkglide drivetrain.

With the latest eONE-SIXTY, the next descent is always about to start. With an all-aluminium frame, it offers maximum value and maximum battery range, thanks to a powerful drive unit paired with a removable 750 Wh battery and optional 360 Wh range extender. The only reason to stop will be because you have to.

With our incredibly capable geometry derived from the award-winning ONE-SIXTY enduro range, we've got handling that'll help you conquer the toughest climbs as well as the most grin-inducing descents, while our proven FAST kinematic suspension will take care of anything the trail throws at it.

This low-maintenance flexstay design offers 174 mm of rear wheel travel to go with 170 mm at the front, with size-tuned progression to maximise performance for all sizes of riders. You can run it with the latest coil shocks without any worries too. With mixed size 29" front and 27.5" rear wheels as standard for playful handling, you can switch to a focussed full 29er setup without messing up the geometry, thanks to our flip chip design.

With low standover heights across all sizes, you can choose between a longer frame for more stable handling or a shorter one for an agile feel, while some models feature our ground-breaking 30-230 mm travel-adjustable dropper post.

  • Fourth generation LITE aluminium frame with 174 mm rear wheel travel
  • Rockshox Zeb fork with 170 mm travel and Super Deluxe rear shock
  • Hardwearing Shimano XT Linkglide drivetrain and MERIDA tubeless-ready wheelset
  • User-removable 750 Wh battery with optional 360 Wh range extender, powerful Shimano EP801 drive unit
  • Mixed wheel size as standard with option to full 29"
  • Reach-based AGILOMETER sizing system with 30-230 mm adjustable dropper post



FRAME eONE-SIXTY LITE IV; MAT aluminium; 160 STR; 29x2.6" max. WHS; 148x12 AST; intube ; 750 Wh
SHOCK Rock Shox Super Deluxe Select
FORK Rock Shox ZEB Select; Air; 170 STR; Tapered; 44mm fork offset; 29x2.8" max WHS
BRAKE-F Shimano XT; 4 piston
BRAKE-R Shimano XT; 4 piston
ROTOR-FRONT Shimano RT64; 220 mm
ROTOR-REAR Shimano RTEM600; 203 mm
CHAIN LG500
CHAINGUARD N/A
CRANKSET FSA 1x Steel Chainring; 36 ATC
CRANK SIZE Shimano FC-E8150; 165 mm all sizes;
DERAILLEUR-FRONT N/A
DERAILLEUR-REAR Shimano XT RDM8130 LinkGlide 11
FREEWHEEL Shimano LG700; 11-50 ATC; 11 GER
PEDAL VP VPE-527
GRIP MERIDA EXPERT EC
HANDLEBAR MERIDA EXPERT eTR; 780 WHB; XS,S 20RHB ; M,L,XL 30RHB
STEM MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount
STEM SIZE 40 mm all sizes
HEADSET Acros ICR MERIDA EXTERNAL neck w/ Blocklock
HUB-F Shimano XT; 110x15 WHF; 32 SPH; Centerlock
HUB-R Shimano XT; 148x12 WHR; 32 SPH; Centerlock
AXLE-F N/A
AXLE-R MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
SADDLE PROXIM Nembo Steel; V-mount adapter; incl. MERIDA minitool
SEAT CLAMP MERIDA EXPERT
SEAT POST MERIDA TEAM TR II; 34.9 DSP; 0 SSB; all sizes 30-230 SPT
SHIFTER-F Shimano SL -MT500-IL
SHIFTER-R Shimano XT M8130 11
SPOKE Black stainless
TIRE-F Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip
TIRE-R Maxxis DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra
LIGHT-FRONT LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount
LIGHT-REAR LEZYNE LED FEMTO USB REAR STVZO
FRAME LOCK N/A
DRIVE UNIT Shimano EP801; 85Nm
DRIVE COVER CR-010 + CR011
BATTERY Trendpower Internal Battery Gen 2; 750Wh
SWITCH Shimano SW-EM800-L
DISPLAY Shimano SC-EM800
