ADVENTURE ROAD RIDING
LONG DISTANCE COMMUTING
ENDURANCE AND ALL-WEATHER PAVEMENT

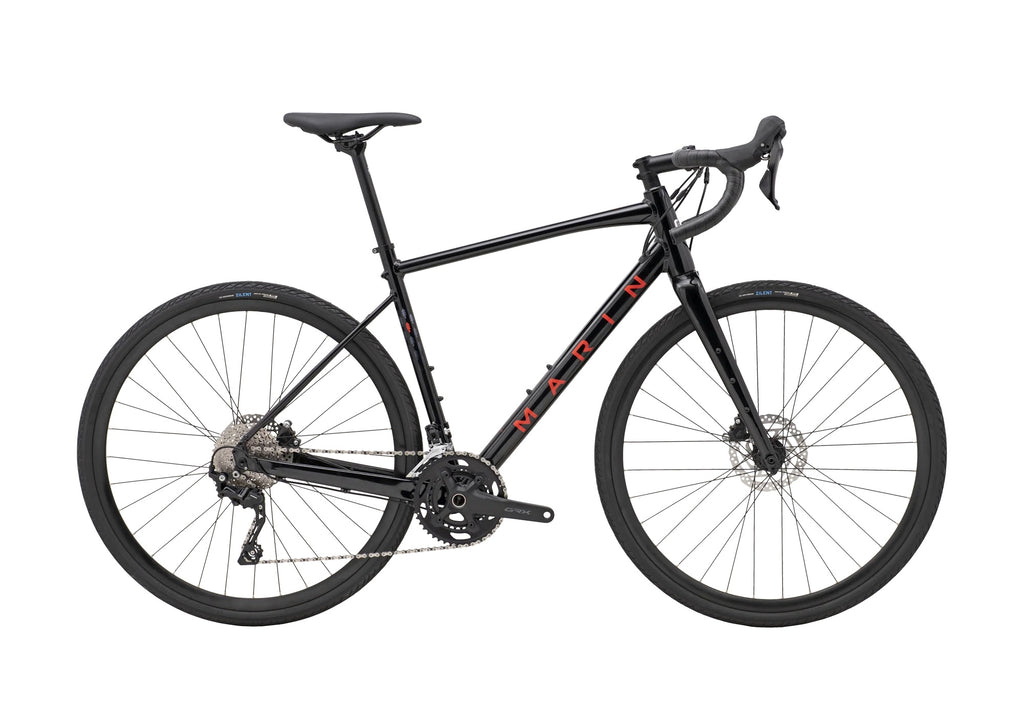

The Marin Gestalt takes you Beyond Road.
Tarmac and trail, rough roads and muddy commutes, bikepacking, touring and adventure. Daily trips and weekend escapes are all within the Gestalt’s wheelhouse, with no stopping when the asphalt turns to dirt.
Our lightweight Series 3 aluminum frame is built to be lightweight, comfortable and confidence-boosting, with room for up to 45mm tires and we’ve paired it up with wide-range gearing, fender eyelets and powerful disc brakes that’ll tame all conditions and all-weather.
| 01. FRAME | Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |
| 02. FORK | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| 03. RIMS | Marin Aluminum Double Wall, 19mm Inner, 24mm Tall, Disc Specific, Tubeless Compatible |
| 04. HUB REAR | Forged Aluminum Alloy, Disc, 32H |
| 05. HUB FRONT | Forged Aluminum Alloy, Disc, 32H |
| 06. SPOKES | 14g Black Stainless Steel |
| 07. TIRES | Schwalbe, G-One Speed, 700Cx35mm |
| 08. DERAILLEUR REAR | Shimano GRX400 10-Speed |
| 09. DERAILLEUR FRONT | Shimano GRX400 |
| 10. SHIFT LEVER | Shimano GRX400 2x10-Speed |
| 11. CRANKSET | Shimano GRX400, 46/30T |
| 12. BOTTOM BRACKET | Shimano |
| 13. CHAIN | KMC X10 |
| 14. CASSETTE | Shimano, HG-5010, 11-36T |
| 15. BRAKES FRONT | Shimano BR-RX400 Hydraulic Disc, 160mm Rotor |
| 16. BRAKES REAR | Shimano BR-RX400 Hydraulic Disc, 160mm Rotor |
| 17. BRAKE LEVERS | Shimano w/ Integrated Shifters |
| 18. HANDLEBAR | Marin Butted Alloy, Compact 12ş Flared Drop |
| 19. STEM | Marin 3D Forged Alloy |
| 20. GRIPS | Marin Perforated Tape |
| 21. HEADSET | FSA No 42ACB, 1 1/8" x 1 1/2 |
| 22. SEATPOST | Marin Alloy, 27.2mm |
| 23. SADDLE | Marin Beyond Road Concept |
| 24. EXTRAS | Commute Platform |
