ADVENTURE ON AND OFF-ROAD RIDING
LONG DISTANCE COMMUTING
GRAVEL RIDING

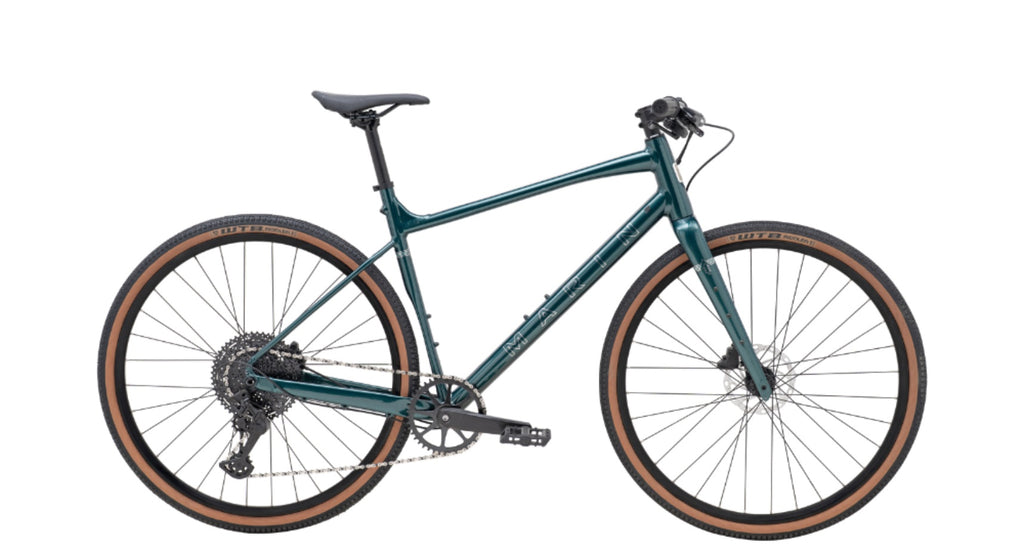

The DSX is the mountain biker’s gravel bike. Familiar hand positioning for comfort and confidence, reliable 1x drivetrains, large tire clearance, and dropper post routing for better off or on road descending prowess. The Marin DSX is everything you want from a modern, flat-bar gravel bike.
Perfect for racking up road miles, daily grinds to work, multi-day epics and flowy singletrack, the DSX is the perfect modern gravel bike for riders that prefer their bars flat.
| FRAME | Series 2 DSX, 6061 Aluminum, Internal Cable Routing, Mudguard and Rack Mounts, IS Disc Mount |
| FORK | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| RIMS | Marin Aluminum Double Wall, Disc Specific |
| HUB, REAR | Forged Aluminum Alloy, Disc, 32H |
| HUB, FRONT | Forged Aluminum Alloy, Disc, 32H |
| SPOKE, NIPPLES NIPPLES | 14g Black Stainless Steel |
| TIRES | WTB Riddler, 700Cx45mm |
| DERAILLEUR, REAR | Tektro Gemini, SL-M5100, 11-speed |
| DERAILLEUR, FRONT | - |
| SHIFT LEVER | Tektro Gemini, SL-M5100, 11-speed |
| CRANKSET | Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 42T Chainring |
| BOTTOM BRACKET | Sealed Cartridge Bearings, Square Taper |
| CHAIN | KMC X9 |
| CASSETTE | Tektro Gemini,, CS-M5100, 11-Speed, 11-50T |
| BRAKE, FRONT | Tektro HD-R285 Flat Mount Hydraulic , 160mm Rotor |
| BRAKE, REAR | Tektro HD-R285 Flat Mount Hydraulic , 160mm Rotor |
| BRAKE LEVERS | Tektro Hydraulic |
| HANDLEBAR | Marin Mini Riser |
| STEM | Marin 3D Forged Alloy |
| GRIPS | Marin MTB |
| HEADSET | FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
| SEATPOST | Marin Alloy |
| SADDLE | Marin DSX |
| PEDALS | Nylon Platform |
