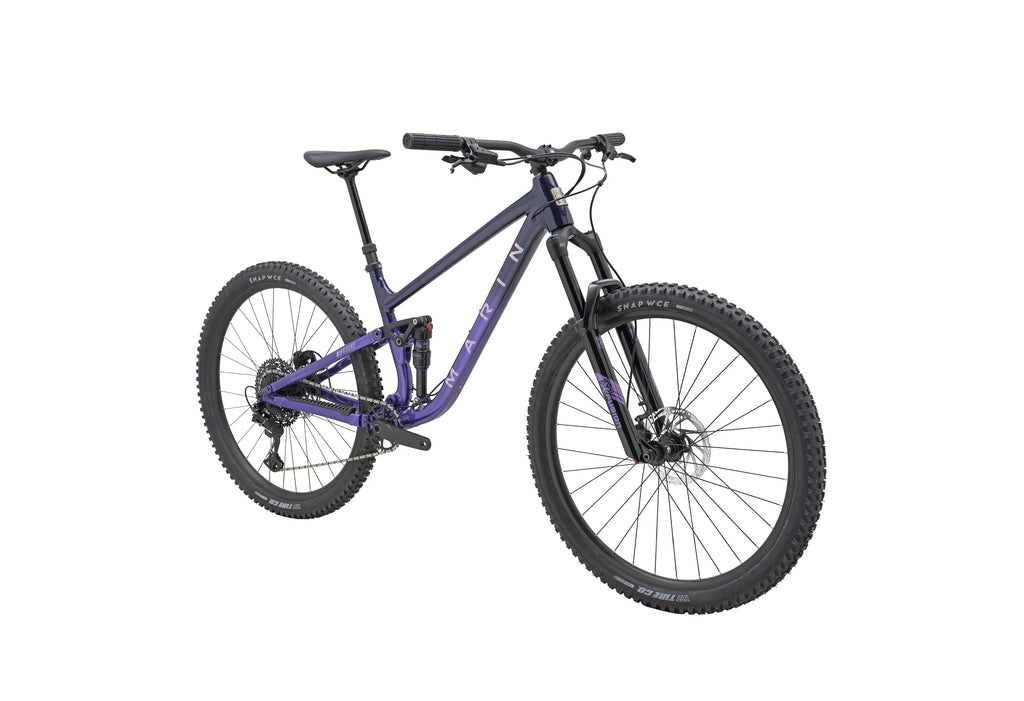

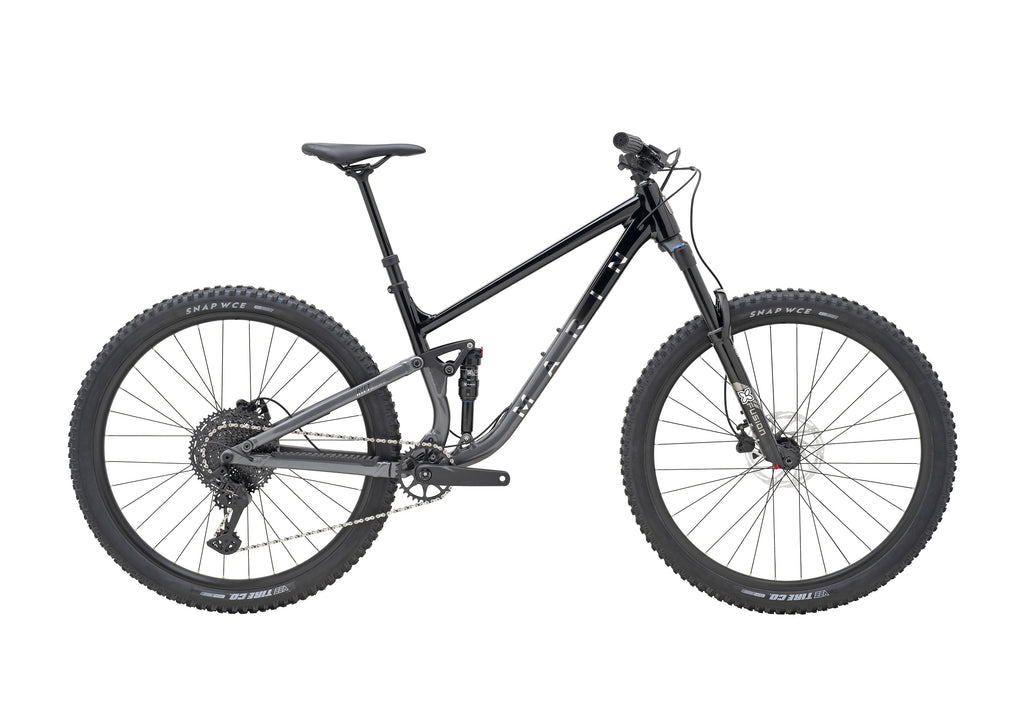

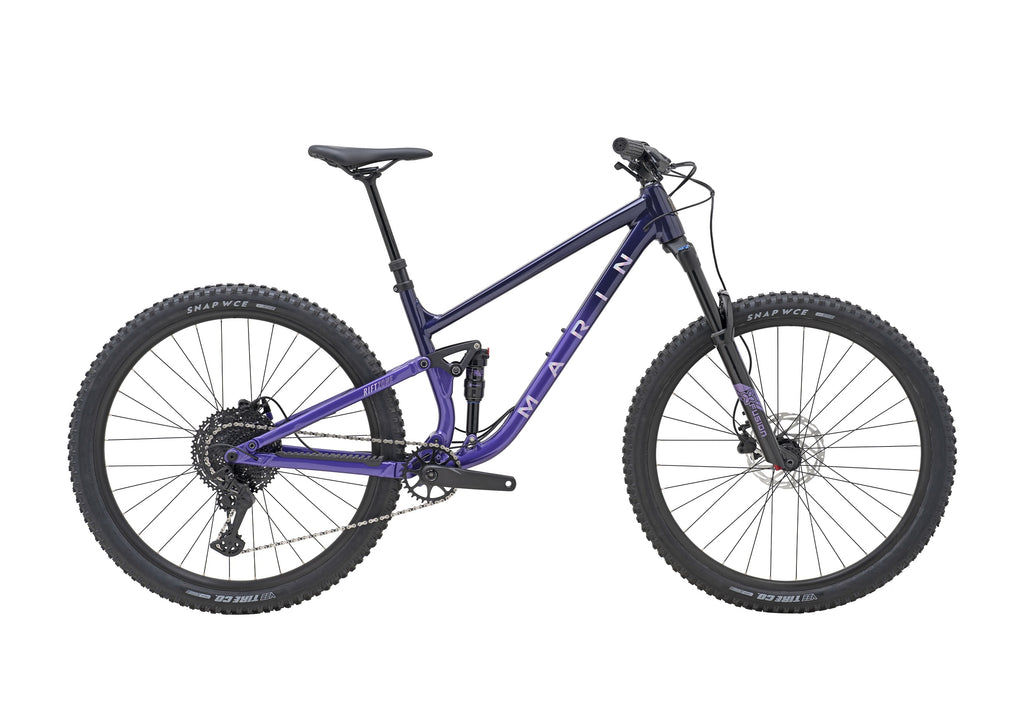

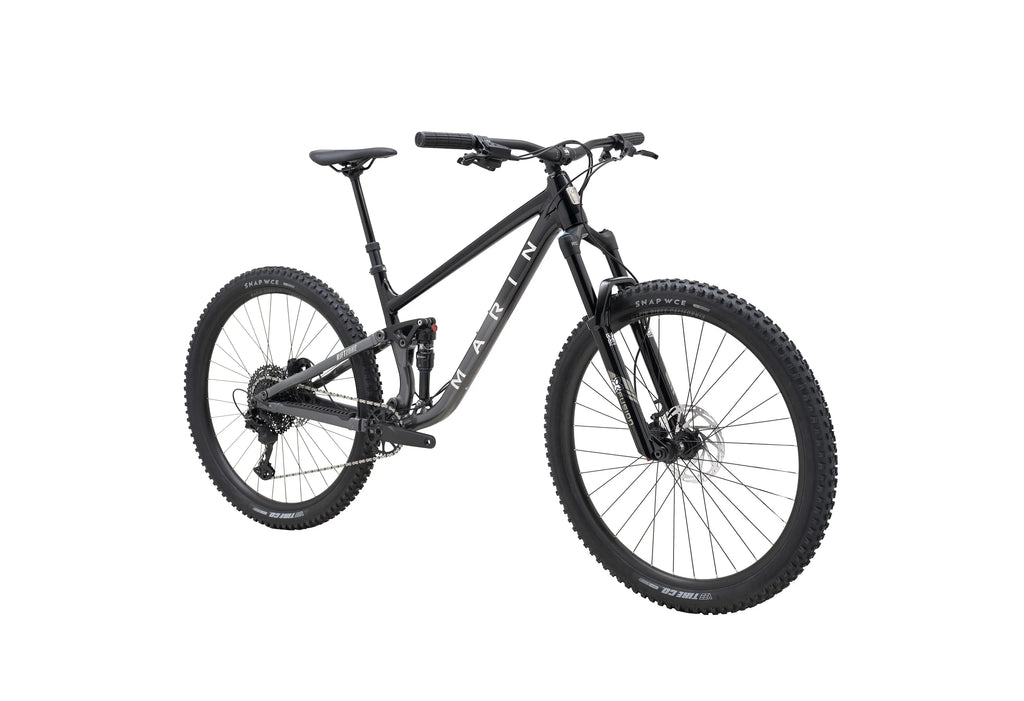

The Marin Rift Zone 1 29" Trail Bike is a capable all‑mountain machine built around a strong alloy frame with a balanced suspension layout. With 140mm of front and 130mm of rear travel, it soaks up rough trails while delivering confident handling and responsive pedalling. Tubeless compatible tyres and durable components provide reliable grip and long‑term performance across terrains.
Perfect bike for the teenagers!
Key Features
- 130mm rear travel, 140mm front
- Series 3 6061 aluminium frame
- 141 Boost spacing, upgradable
- X-Fusion Sweep fork
- Marin hydraulic brakes
| FRAME | Series 3 6061 Aluminum, 130mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs |
| FORK | X-Fusion Slide (29") or Sweep (27.5") Boost RC, 140mm Travel, Compression and Rebound Adjustment, 44mm Offset |
| SHOCK | X-Fusion O2 Pro R, Custom Tune, 210x55mm, M8x25mm Hardware Top and Bottom |
| RIMS | Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible |
| HUB REAR | Joytech D142TSE-B5, 141QR, 6-Bolt |
| HUB FRONT | Joytech D041-B15, 110x15mm, 6-Bolt |
| SPOKES | 14g Black Stainless Steel |
| TIRES | Vee Tire Co. Snap WCE 2.35", Top 40 Compound, GXE Core, 90 TPI, Tubeless Compatible |
| DERAILLEUR REAR | Tektro RD-5100-L, Long Cage, Clutch |
| SHIFT LEVER | Tektro, SL M5100-11R, 11-Speed |
| CRANKSET | Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing |
| BOTTOM BRACKET | External Sealed Cartridge Bearing |
| CHAIN | KMC X-11 Silver and Black |
| CASSETTE | Tektro CS-M5100-11, 11-Speed, 11-50T |
| BRAKES FRONT | Tektro HD-M280 Hydraulic, 180mm Rotor |
| BRAKES REAR | Tektro HD-M280 Hydraulic, 180mm Rotor |
| BRAKE LEVERS | Tektro HD-M280 |
| HANDLEBAR | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5ş Up, 9ş Back |
| STEM | Marin 3D Forged Alloy, 35mm |
| GRIPS | Marin MTN, Closed End |
| HEADSET | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| SEATPOST | X-Fusion Manic, 1x Composite Remote, Size XS-S 150mm Travel, Size M-XL 170mm Travel, 30.9mm |
| SADDLE | Marin Speed Concept |
